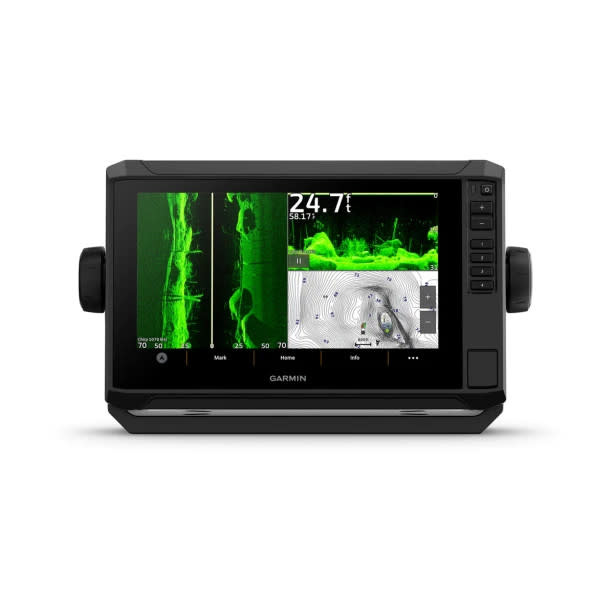

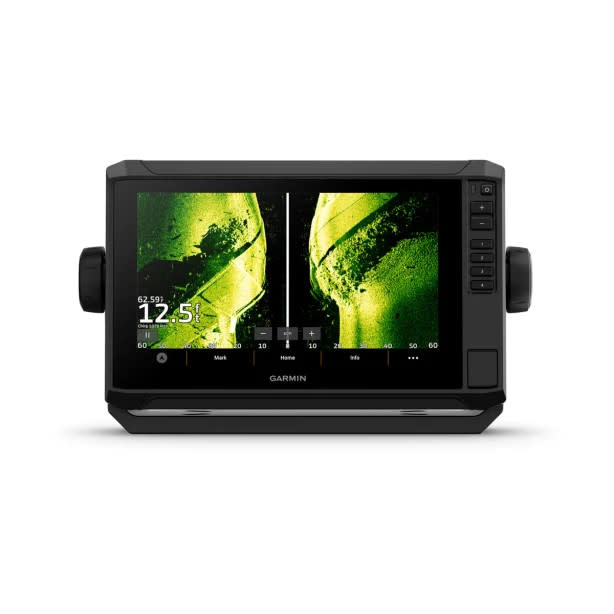

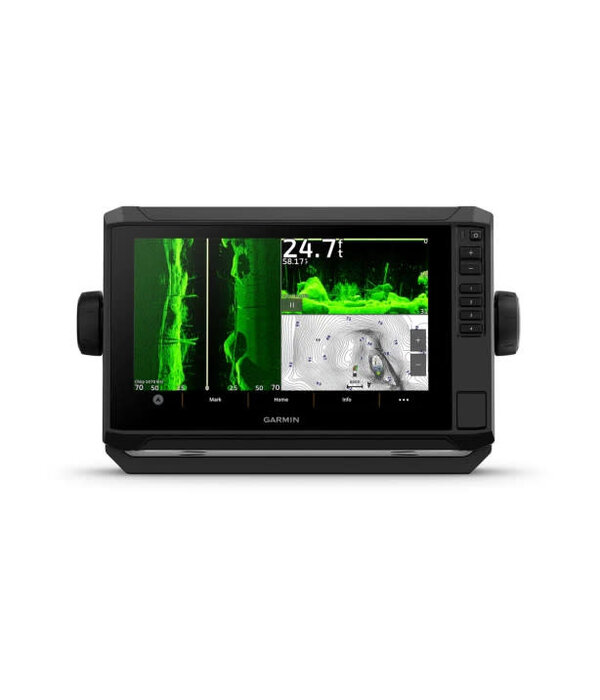

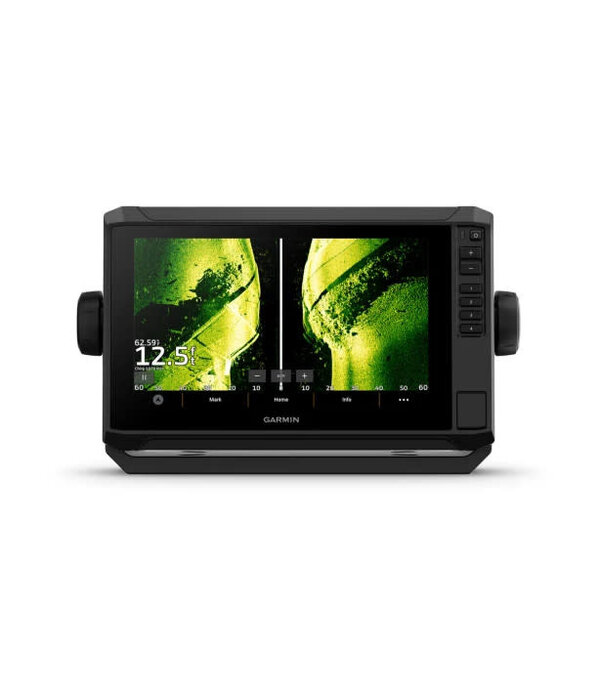

Step up your boating and angling with the Garmin® ECHOMAP™ UHD2 93sv 9" Fish Finder/Chartplotter with GT56UHD-TM Transducer and Garmin Navionics+® US Inland Mapping. This powerhouse Garmin fish finder offers best-in-class sonar and mapping and a premium touch-screen display with keyed assist. You'll know the water even better than the locals. 3 sonar types—Garmin traditional, ClearVü™, and SideVü™ sonars—give you stunning clarity and detail. High-contrast, vivid-color palettes distinguish targets like never before. Garmin Navionics+ US Inland Mapping gives you incredible data and detail so you can navigate like a pro; plus, you'll have a 1-year subscription for daily updates, depth range shading, and more. Your ECHOMAP UHD2 also supports LiveScope™ live-scanning sonar (transducer not included). Built-in Wi-Fi® connectivity pairs with the free all-in-1 mobile app on your compatible smartphone for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data, and more. Chartplotters with built-in Garmin Navionics+ charts include downloadable Auto Guidance+ technology with the ActiveCaptain app. Your ECHOMAP UHD2 wirelessly connects to your Force trolling motor (not included) to create and follow routes, navigate to waypoints, control speed, check battery life, and more. Get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS, completing this Garmin chartplotter as your go-to solution for successful fishing and boating every time.
- Premium, 9" touch-screen display with keyed assist
- High-contrast, vivid-color palettes
- Garmin traditional, ClearVü, and SideVü sonars
- Navionics+ US Inland Mapping with 1-year updates subscription
- Built-in Wi-Fi connectivity for ActiveCaptain all-in-1 mobile app pairing
- Pinpoint location accuracy with multi-band GPS
- Compatible with your Force trolling motor to create and follow routes, navigate to waypoints, control speed, check battery life, and more (trolling motor not included)
General |
|
Dimension | 10.4" x 6.5" x 3.2" (26.4 x 16.6 x 8.0 cm) |
---|---|
Weight |
2.9 lbs (1.3 kg) |
Water rating |
IPX7 |
Touchscreen | |
Display Type | WSVGA, TN |
Display Size | 7.8" x 4.5", 9.0" (19.8 x 11.5 cm, 22.9 cm) |
Display resolution | 1024 x 600 pixels |
Mounting Options | Bail or flush |
Input | Touchscreen with Keyed Assist |
Maps & Memory |
|
Accepts Data Cards |
1 microSD™ card; 32 GB maximum size |
---|---|
Waypoints |
5,000 |
Track points | 50,000 |
Tracks | 50 saved tracks |
Navigation Routes | 100 |
Sensors |
|
GPS | |
---|---|
GLONASS | |
Galileo | |
BeiDou | |
Has built-in receiver | |
Receiver |
10 Hz |
NMEA 2000 Compatible | |
Supports WAAS | |
Supports multi-band, multi-constellation GPS |
Built-in Maps |
|
Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
---|---|
Garmin Navionics+ Inland & Coastal | yes (see Additional) |
Garmin Navionics+ (Coastal) | yes (see Additional) |
Garmin Navionics+ (Inland) | yes (see Additional) |
Tide tables | yes (see Additional) |
Optional Map Support |
|
BlueChart g3 | |
---|---|
BlueChart g3 Vision | |
LakeVü g3 | |
LakeVü g3 Ultra | |
Garmin Navionics+™ | |
Garmin Navionics Vision+™ | |
TOPO 100K | |
Standard Mapping | |
Garmin Quickdraw Contours |
Chartplotter Features |
|
AIS | |
---|---|
DSC | |
Supports Fusion-Link™ compatible radios | |
ActiveCaptain® compatible | |
Sailing Features |
Electrical Features |
|
Power Input | 9 to 18 Vdc |
---|---|
Typical current draw at 12 Vdc | 1.72 A |
Maximum current draw at 12 Vdc | 3.5 A |
Maximum power usage at 10 Vdc | 20.7W |
Sonar Features |
|
Displays sonar | |
---|---|
Power output | 500 W |
Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
ClearVü | built-in 260/455/800/1000/1200 kHz |
SideVü | built-in 260/455/800/1000/1200 kHz |
Panoptix™ sonar | |
LiveScope |
Connections |
|
NMEA 2000® ports | |
---|---|
Garmin Marine Network Ports |
1 |
12-pin transducer ports | 1 |
BLUETOOTH® pairing | |
ANT+ (Connectivity) | |
Garmin Wi-Fi network (local connection) |
Additional |
|
Additional |
|
---|
