Harken

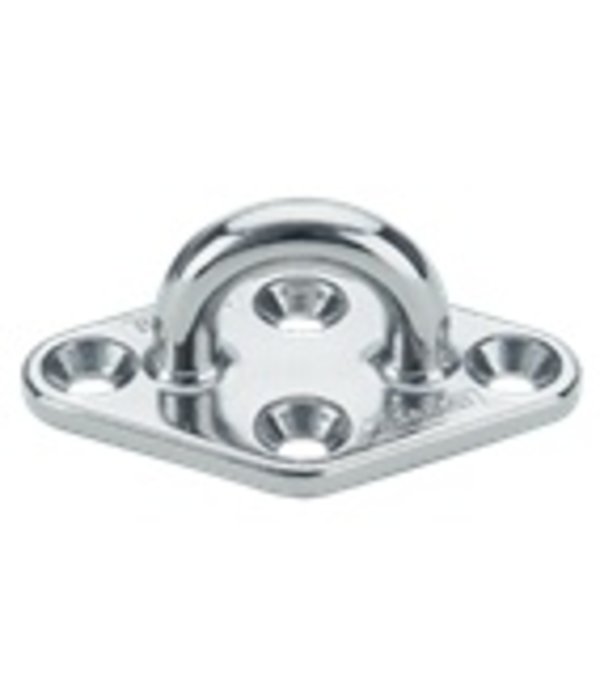

Harken Pad Eye Large SS Diamond

$ 39.99
Excl. tax

Not in Stock but Available to Special Order (We Will Contact You with a Delivery Estimate)


Harken Pad Eye Large SS Diamond Part# 97653011934



⚠️ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Stock number:
HAR 689
UPC/EAN code:
97653011934
SKU code:
HAR 689

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items. Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.

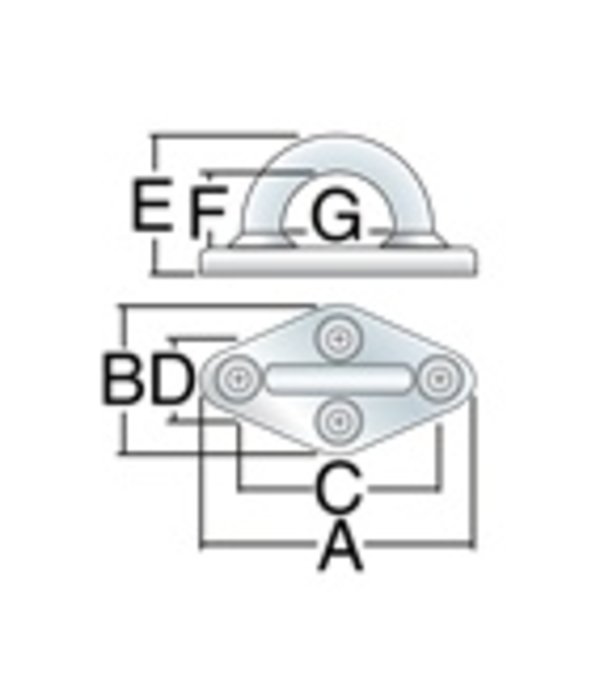

Product Specs:

A (mm)98 mm
A (in)3 7/8 in
B (mm)59 mm
B (in)2 5/16 in

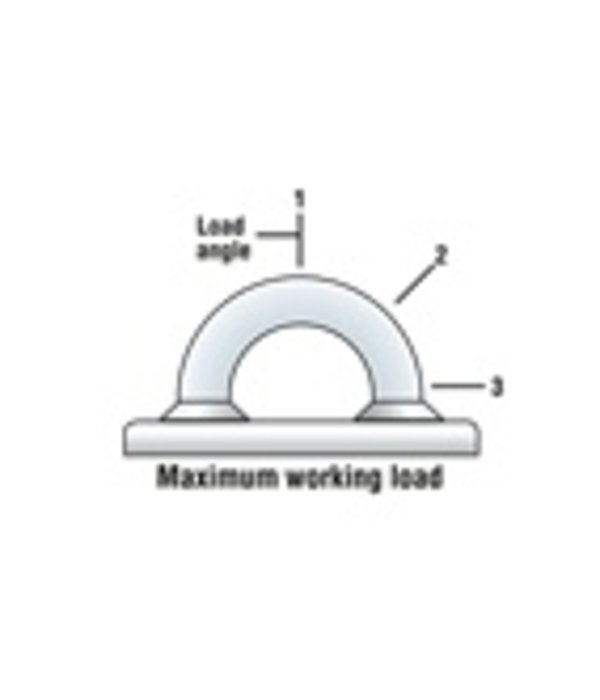

C (mm)73 mm C (in)2 7/8 in D (mm)35 mm D (in)1 3/8 in E (mm)40 mm E (in)1 9/16 in F (mm)22 mm F (in)7/8 in G (mm)27 mm G (in)1 1/16 in Weight (g)213 g Weight (oz)7.5 oz Maximum Working Load - angle 1 (kg)3855 kg Maximum Working Load - angle 1 (lb)8500 lb Maximum Working Load - angle 2 (kg)3628 kg Maximum Working Load - angle 2 (lb)8000 lb Maximum Working Load - angle 3 (kg)3540 kg Maximum Working Load - angle 3 (lb)7800 lb Breaking load - angle 1 (kg)8618 kg Breaking load - angle 1 (lb)19000 lb Breaking load - angle 2 (kg)7800 kg Breaking load - angle 2 (lb)17200 lb Breaking load - angle 3 (kg)7075 kg Breaking load - angle 3 (lb)15600 lb Fasteners (mm)8 FH mm Fasteners (in)5/16 FH in
