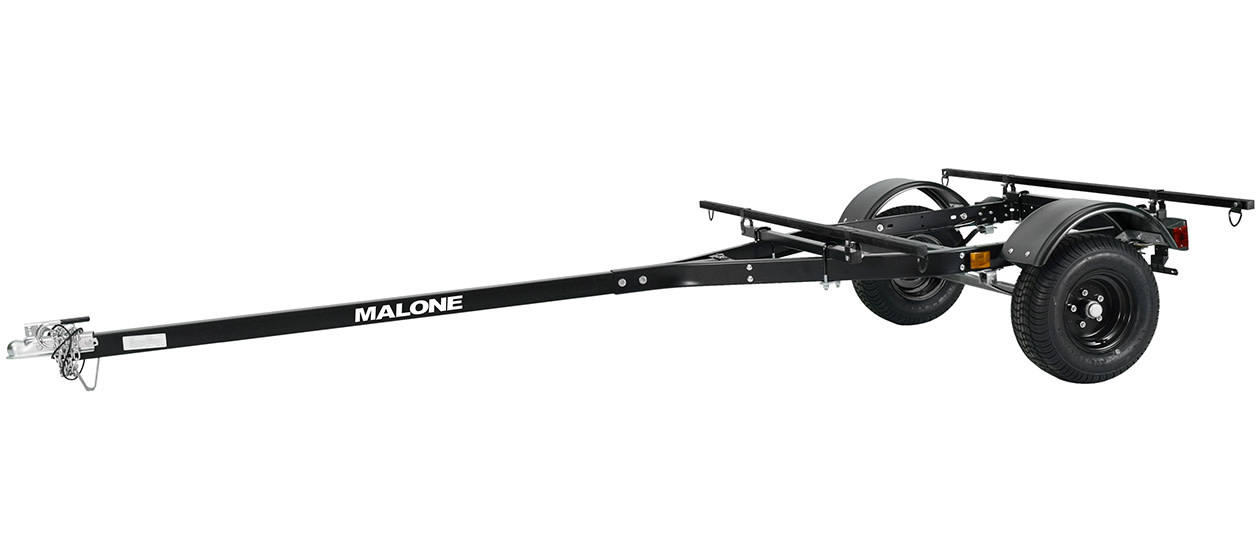

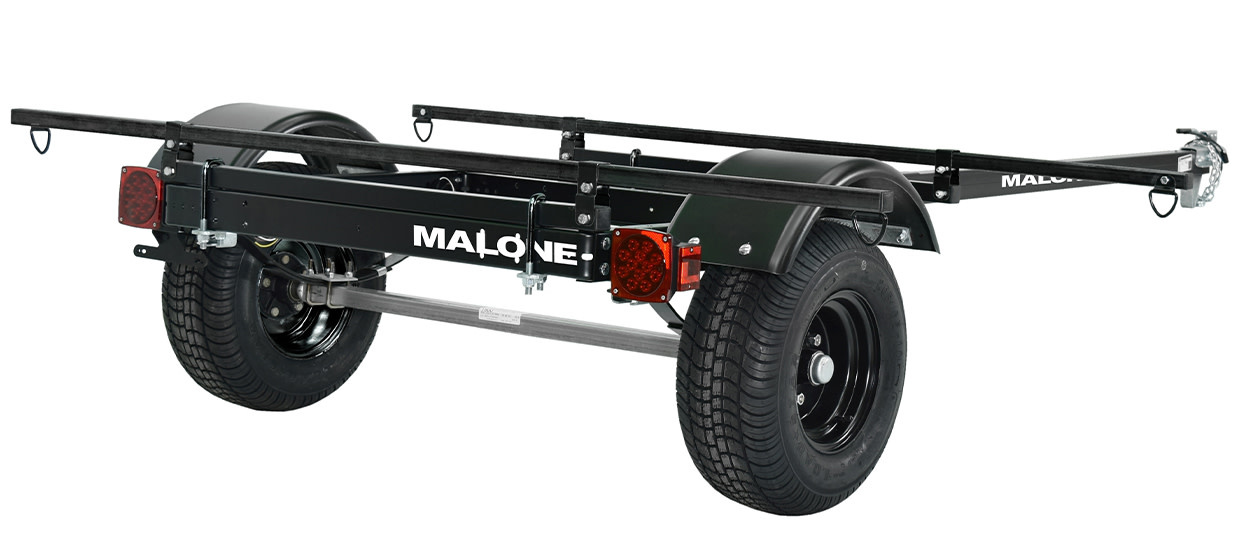

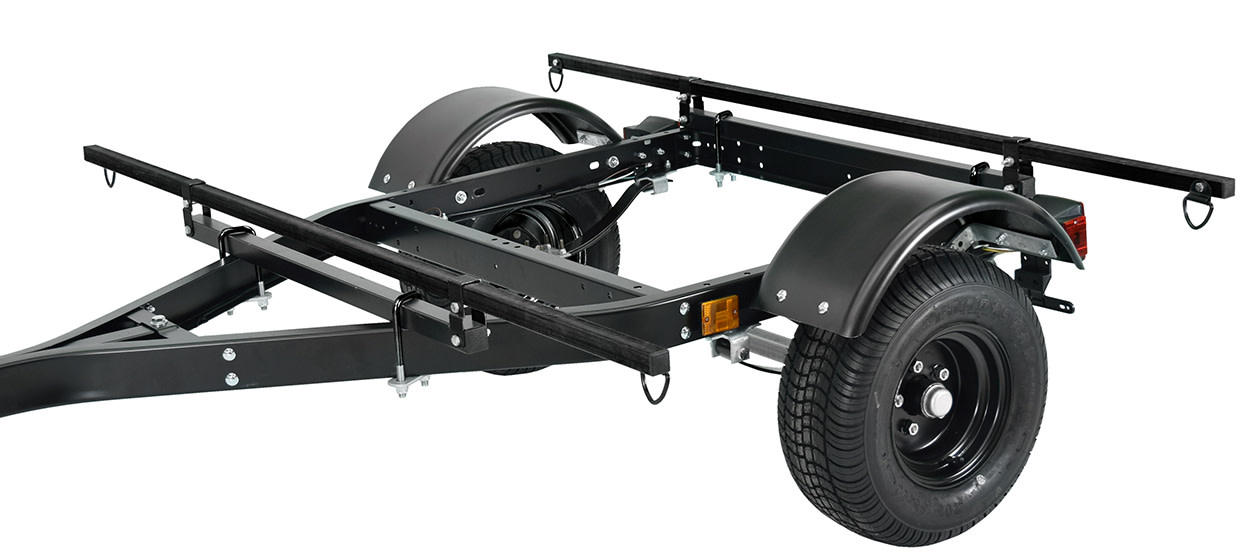

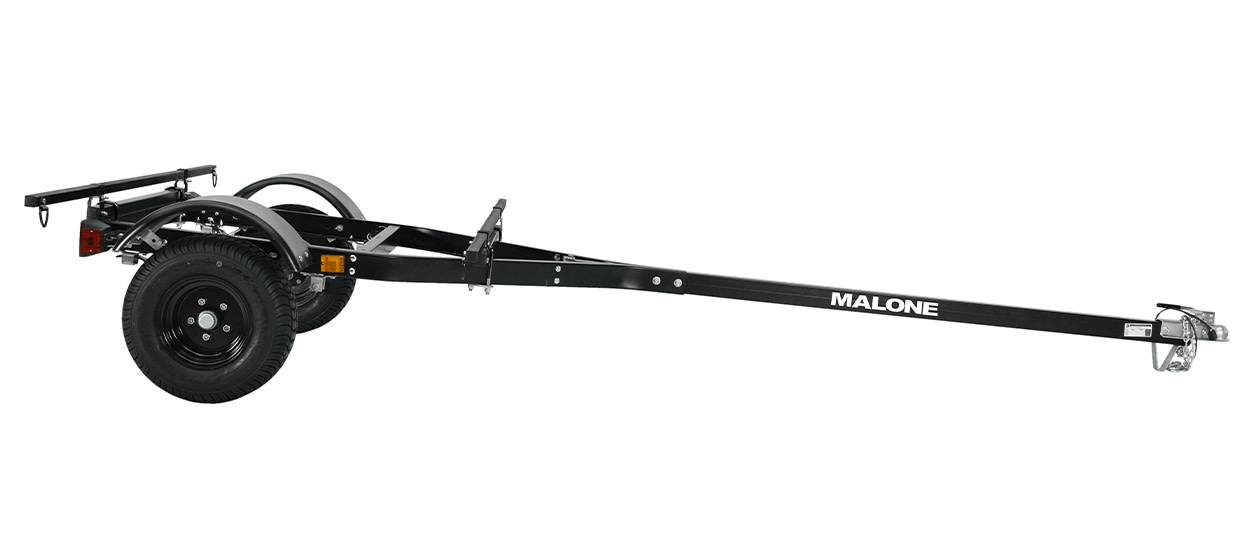

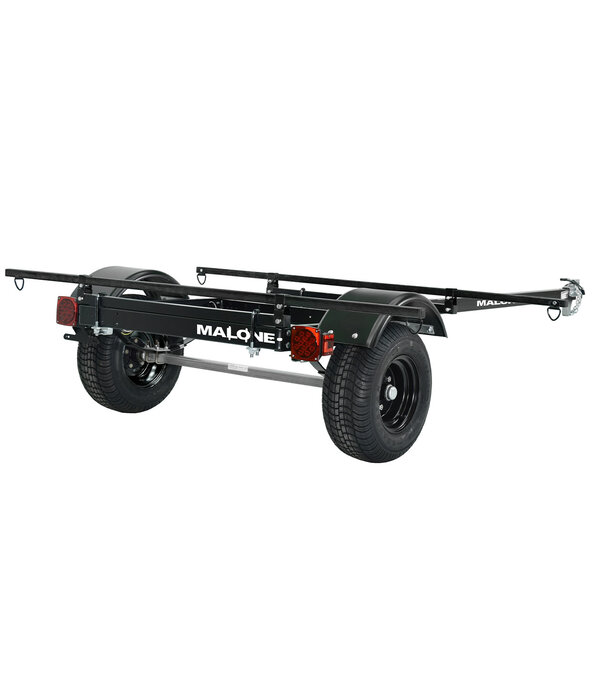

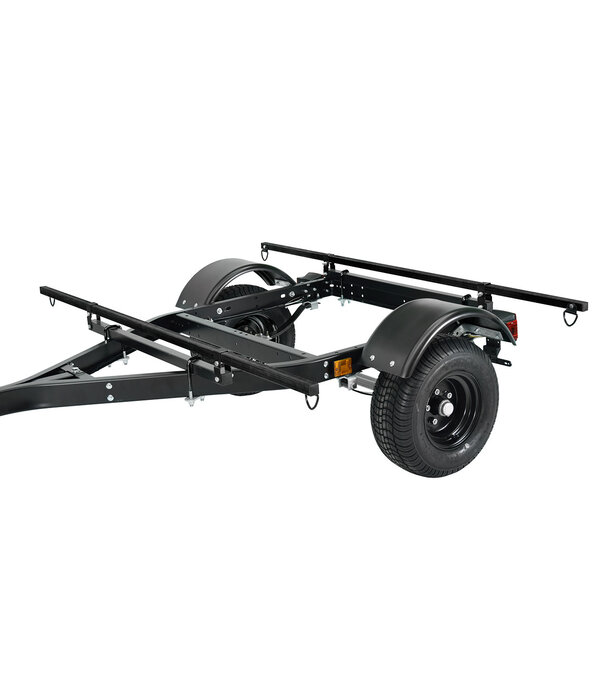

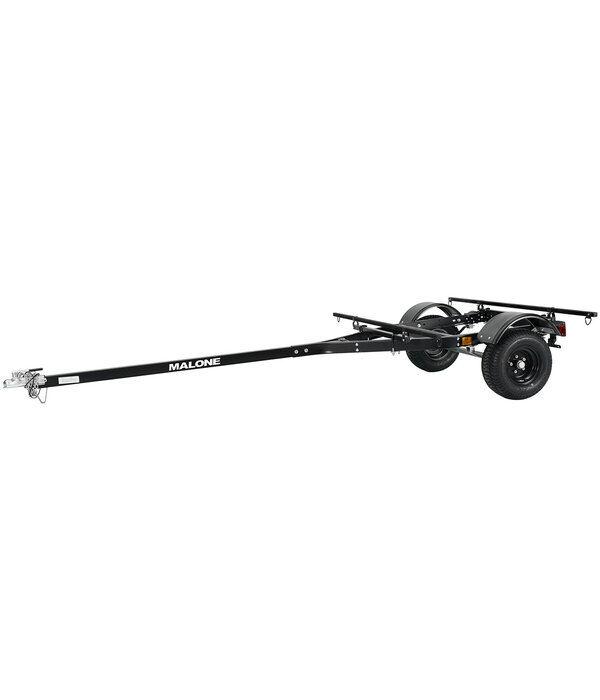

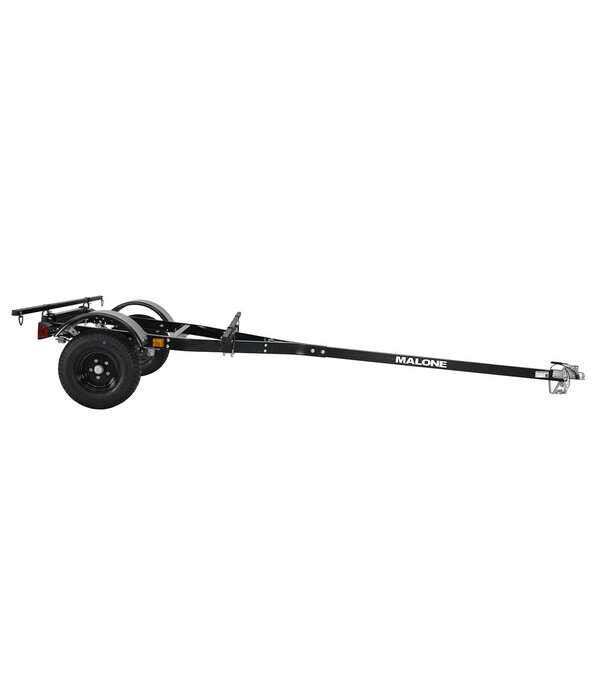

Malone Microsport Off-Road Lowbed Trailer With 78" Load Bars (Requires Additional Make Ready And Shipping Charges)

The MicroSport™ Off-Road Trailer is FULLY SUBMERSIBLE and offers a unique BLACK POWDER COAT OVER A PRE-GALVANIZED STEEL frame creating one of the most rust-preventive coatings in the industry. Each kit is comprised of a sturdy reinforced steel tongue, a “plug-&-play” LED submersible lighting system that meets DOT standards, 78" steel load bars, and large oversized pontoon tires. With the use of common tools, assembly can be accomplished in around three to four hours. Backed by a Five-Year Limited Warranty and proudly crafted in the United States.

Features:

• Pre-assembled hubs for a clean and simple installation
• Large oversized pontoon wheels with marine grade sealed bearings
• Reinforced steel tongue can transport boats up to 20' in length
• 78’’ steel, 1 ¼’’ square load bars featuring d-ring tie-downs
• 11 gauge pre-galvanized, black powder coated steel construction for years of service
• Plug & Play Submersible LED Light Kit
• Five Year Limited Warranty
• Made in the USA

Specifications:

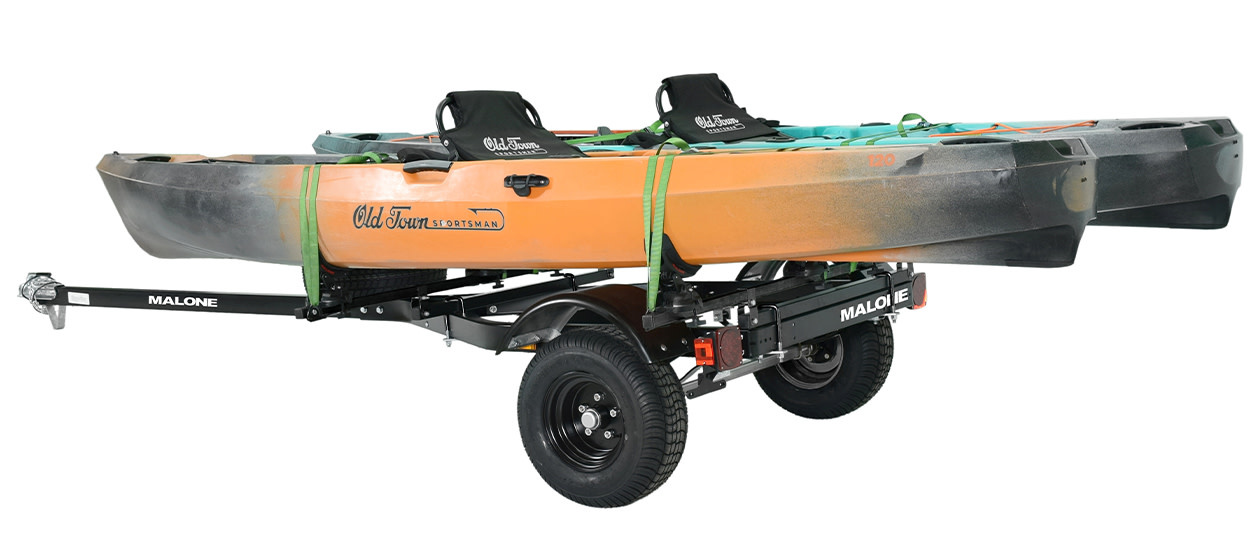

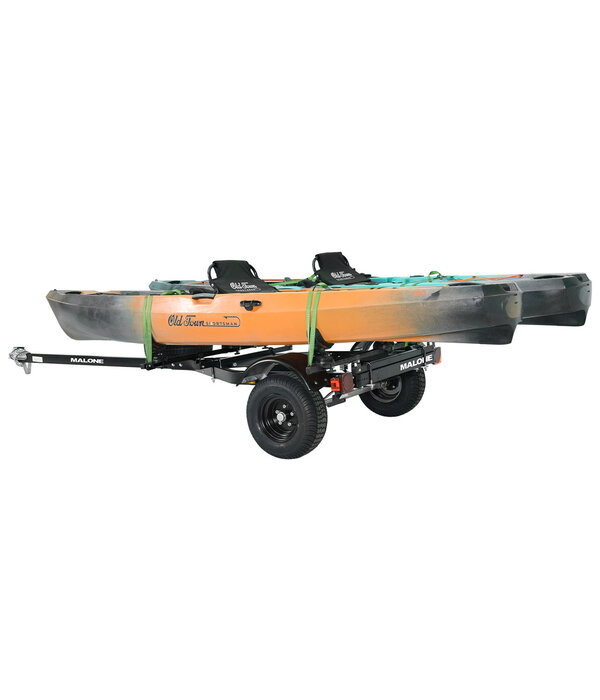

• Load Capacity: 800 lb / 20' canoe or kayak
• Dimensions: 13' 3" (length)
• Width (Without crossbars): 55"
• Frame Width Assembled (Width within Fenders): 40"
• Weight (Without accessories): 197 lb
• Frame: 11-gauge powder-coated, marine grade galvanized steel
• Required Ball Size for Vehicle Attachment: 2"
• Ball Height: 18" From Ground - To Top Of Ball
• Recommended Tire Pressure: 35 to 40 PSI
• Tongue Weight (Unloaded): 25 lb
• Cross Bar Spread (Adjustable): 44" - 63"
• Height of Cross Bars from Ground: 30"

What’s In The Box:

• (1) Instruction Manual & Registration Documentation
• Assembly Required - Multi-Boxed Item - Includes 5 Cartons
