Power Pole

Power Pole Charge Power Management System

$ 1,499.00
Excl. tax
Sold Out (Please Contact Us for Availability)



⚠️ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Stock number:
JL CH-500W
SKU code:
CH-500W

The CHARGE Marine Power Management Station gives you power where, how and when you need it.CHARGE does the work of a traditional battery charger, a charge-on-the-run, plus an emergency start system all in one compact unit. CHARGE automatically devotes more power to the batteries that need it the most for maximum efficiency, giving you more time on the water.

    Features:
  • Automatically moves power back and forth between cranking and trolling batteries
  • Displays battery voltage and status data on your smart phone or Lowrance unit (requires CM2 GATEWAY).
  • Complete battery maintenance - uses float mode when plugged in at home
  • Charges on the run from the alternator while the motor is running
  • Works with all battery types – lead acid, AGM, GEL, lithium or TPPL
  • Built-in emergency power transfer



An Intelligent Power Management System

This 500-watt power station delivers up to 40 amps of charging power to the cranking battery and up to 25 amps to the trolling batteries and works with multiple battery types including lead acid, AGM, GEL, lithium or TPPL. With the C-Monster app, you’re able to monitor your battery status in real-time and prioritize either the trolling or cranking batteries when recharging. The CHARGE will automatically maintain minimum power levels based on your preference settings.

Compact Design

The main CHARGE unit is 10.62x7.95x2.78 inches in size and weighs under nine pounds making it small enough to fit into your boat with ease. Since the CHARGE is an all-in-one unit it also can take the place of current chargers and jump start systems, freeing up even more valuable space on your vessel.

Intuitive Display Options

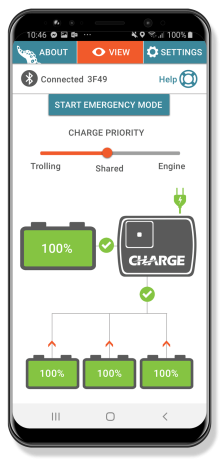

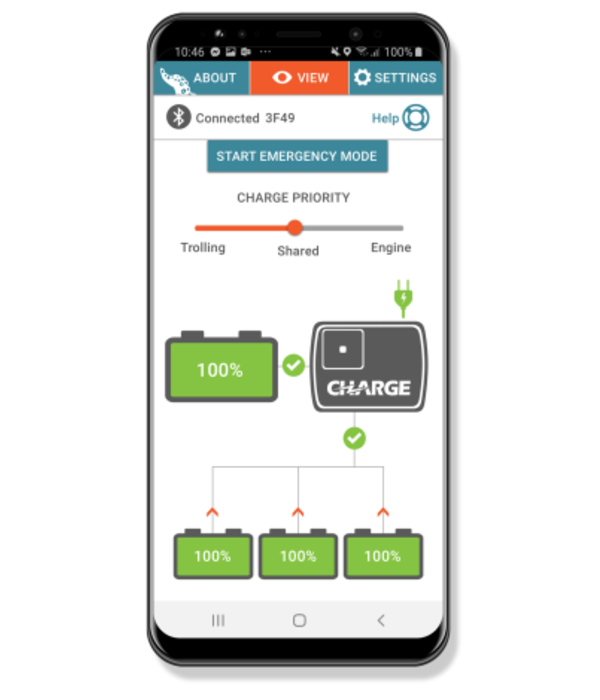

The CHARGE automatically displays battery status using an easy-to-read LED light system or you can receive more in-depth battery voltage and status data on your smart phone or compatible Gateway-equipped MFD.

Simple to Install

The CHARGE can be installed quickly and easily with just four screws. The easy-to-follow wiring instructions uses your boat’s existing shore power and alternator system meaning there is no complicated splicing or advanced electrical knowledge needed. Just use the diagram to configure your boat’s battery banks.

Built-In Safety Features

From the integrated heatsink cooling system to the temperature sensors built into the wiring sheath, the CHARGE was engineered for safe operation even under the most demanding conditions. The CHARGE is also constructed to IP65 waterproof standards to avoid possible water intrusion into the unit’s inner components.

Wiring Sheath

Compatible MFD's

(Requires C-Monster Gateway.)

Simrad
  • NSO Evo3
  • NSO Evo2
  • NSS Evo3
  • GO 5 XSE
  • GO 7 XSR
  • GO 9 XSE
  • GO 12 XSE
  • IDS
  • All 2020
    and newer MFD's
Lowrance
  • HDS Live
  • HDS Carbon
  • Elite Ti2
Mercury Vessel View
  • 903
  • 703
  • 502

Works With Existing MFD's

(Sold Separately.)

With the C-Monster GATEWAY, you can connect and control your CHARGE from your LOWRANCE, SIMRAD or Mercury Vessel View displays.

CHARGE Installation & Owner's Guide

Power-Pole CHARGE Marine Power Management Station

The All-in-One, Charge on the Run, Smart Charger

The CHARGE is the most advanced power management available that does the work of three devices -- a traditional battery charger, a charge-on-the-run, and emergency start system -- all in one compact unit. CHARGE monitors power use and puts power where it's needed most -- a feat no other battery-charger system can accomplish.

Since every angler has different power-consumption needs when out on the water, CHARGE automatically devotes more power to the batteries that need it the most for maximum efficiency. Whether it is the trolling motor, live wells or other devices, CHARGE seamlessly manages power so boaters can enjoy more time on the water.

Power WHERE you need it

Whether you are plugged in directly to a 120V power outlet at the dock, at home or while using it to charge from your primary motor while on the run, the CHARGE system replenishes your entire battery bank, including the 12V cranking battery and up to three auxiliary batteries, all at once. This 500-watt power station delivers up to 40 amps of charging power to the cranking battery and up to 25 amps to the trolling batteries and works with multiple battery types including lead acid, AGM, GEL, lithium or TPPL. With the C-Monster app, you're able to monitor your battery status in real-time and prioritize either the trolling or cranking batteries when recharging.

Power HOW you need it

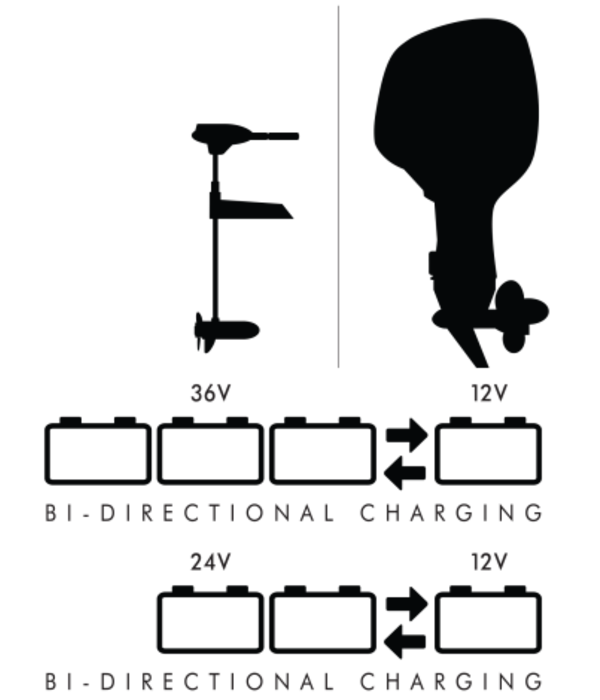

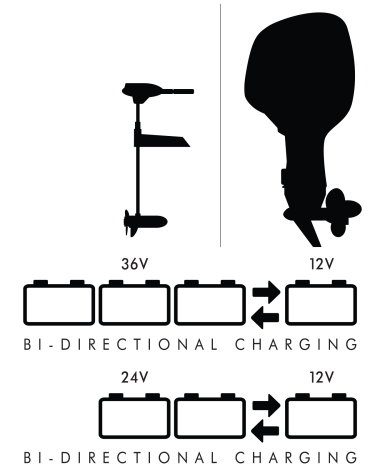

Not every angler has the same power consumption needs when they are out on the water, which is why the CHARGE was designed as the first bi-directional power management system with the ability to move power back-and-forth between batteries. CHARGE automatically devotes power to the batteries that need it the most for maximum efficiency. Whether it's the trolling motor, live wells, or other devices, CHARGE seamlessly manages your power so you can enjoy more time on the water. When used with the C-Monster app, CHARGE will let you prioritize your energy replenishment with just the slide of your finger.

Power WHEN you need it

With CHARGE you'll never have to worry about getting stranded on the water. The CHARGE will automatically maintain minimum power levels based on your preference settings. Thanks to the Emergency Power Transfer feature, CHARGE also ensures that you will have enough power to start your engine. With one touch on the C-Monster app, CHARGE will automatically move enough power from the auxiliary batteries to the cranking battery to start your motor, even after a long day on the water.

CHARGE is the next step in Total Boat Control

Power-Pole has taken advanced technology inside your boat to deliver a battery charger and power management system that outperforms anything else in its class. CHARGE does the work of a traditional battery charger, plus an emergency start system all in one compact unit. CHARGE monitors your power use and puts power where you need it - no other battery charger system can do all that.
