FPV10233-V3 X 3 - 12 Volt - 150Ah Lithium Ion Batteries (3 - 50Ah in Parallel)
150AH KAYAK BATTERY AND CHARGER COMBO - With Parallel Connections
Includes 3 - 50AH Batteries and Chargers and Parallel Connections and Instructions

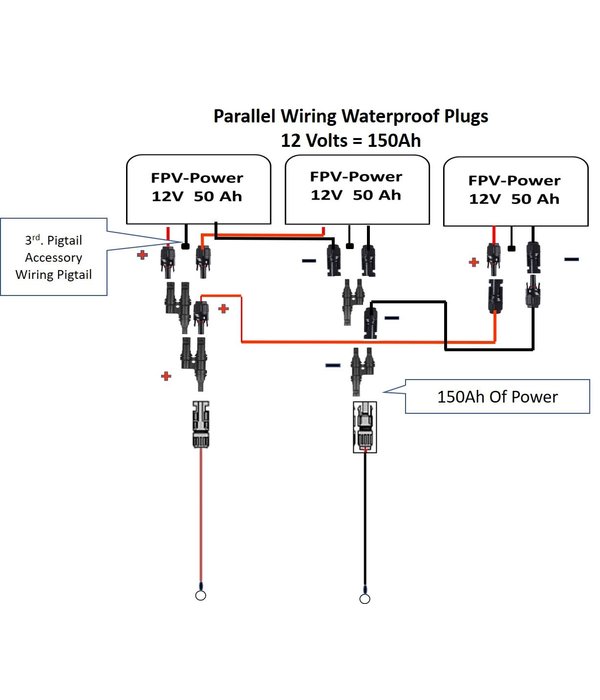

Power your electric motor with our FPV-POWER Lithium Ion Polymer Battery packs! Our batteries weigh about 1/5th of the weight of a comparable Lead Acid and are physically much smaller! Our battery packs are designed with safety as our number one priority and come in a waterproof hard case. We have also included a Battery Management System (BMS) which will auto cut off the power if there is an external short and will also protect the battery from over discharge when in use and overcharge when charging. Comes terminated with an 60A waterproof connections(IP67 rated) plugs 2 Male/Female Parallel Plug and Play connections with Positive & Negative wires provided as illustrated in the pictures. We make it simple to run your batteries in Parallel. Also included with our Batteries is a 3rd. pigtail coming off the battery which will allow you to use all of our wiring accessories and extensions. These pigtails can be easily wired in parallel with our plug and play parallel pigtail
This 150Ah pack is made up of 3 x 50Ah batteries with a parallel harness to give you the total of 150Ah. The benefits of this setup is that one can be removed for shorter trips and that charging times are much shorter as this kit also comes with individual chargers for each battery.
Power your electric motor with our FPV-POWER Lithium Ion Polymer Battery packs! Our batteries weigh about 1/5th of the weight of a comparable Lead Acid and are physically much smaller! Our battery packs are designed with safety as our number one priority and come in a waterproof hard case. We have also included a Battery Management System (BMS) which will auto cut off the power if there is an external short and will also protect the battery from over discharge when in use and overcharge when charging. Battery comes terminated with a waterproof 60A plugs and spare ones are supplied for you to connect to your motor leads.
These best selling batteries are perfect for Kayak utilities such as Fish Finders/GPS, Lights, Cell Phone Charging etc. The compact and IP67 Waterproof design of these little powerhouses conveniently stow into most Kayak hatches and weigh much less.
FPV-Power's High Quality High Density Li-Ion Cells provide you with smaller and lighter battery packs.
All FPV-Power Lithium Ion Batteries are protected by FPV-Power's powerful and efficient Battery Management System.
IP67
10
2
4
3-5
400-800
The Lithium Kayak Battery refines the kayak battery beyond the heavy and cumbersome marine batteries of the past. This lightweight and IP67 water proof Lithium Battery not only excels in form but in function as well with multiple output options, superior efficiency, power and amp hours. The compact design conveniently stows in most kayak hatches.
Power your electric motor with our FPV-Power Lithium Ion polymer battery packs! Our batteries weigh about 1/5th of the weight of a comparable lead acid and are physically much smaller! Our battery packs are designed with safety as our number one priority and come in a waterproof hard case. We have also included a battery management system (BMS) which will auto cut off the power if there is an external short and will also protect the battery from over discharge when in use and overcharge when charging. Comes with IP67 rated waterproof plugs and a spare set is supplied for you to connect to your motor leads.
New Accessory Pigtail for V3
Technical Specifications
Product Description | FPV-POWER 150AH V3 WATERPROOF LITHIUM BATTERY - (3) 50Ah V3 Batteries in Parallel / Parallel Wiring Harness -WITH (3)10AH CHARGER2 |
SKU | 10233-V3X3 |
Voltage | 12 V |
Capacity | 150AH |
Dimensions | 6.75 In X 5.375 In X 3.75 In X 2 = 20.25 In X 16.13 In X 11.25 In |
Energy | 1770wh |
Weight | 21.24 LBS |
Charge Voltage | Use FPV provided Charger Only |
Charge Current | Use FPV provided Charger Only |
Max. Continuous Discharge Current | 60A |
Battery Cycle Life | 400-800 cycles |
Warranty | 1 year |
Connection Method | Parallel Wiring Harness - PLUG & PLAY |
Case | WATERPROOF HARD CASE IP67 (WATERPROOF ONLY WHEN LEAD IS CONNECTED) |
Battery Management System | BUILT-IN SHORT CIRCUIT PROTECTION WITH CHARGING AND DISCHARGING SAFETY CUTOFF. |
Charger | (3) 10A WALL CHARGER |
Included in the box
- Two 12 Volt - 150Ah Lithium Waterproof Kayak Battery
- Two 10A Battery Wall Charger
- Two Male Pigtail
- Four Wire Crimps
- Parallel Wiring Harness (PLUG & PLAY
Wire Description
- Brown Wire = Positive/+/ Red Wire
- Blue Wire = Negative/-/ Black Wire
