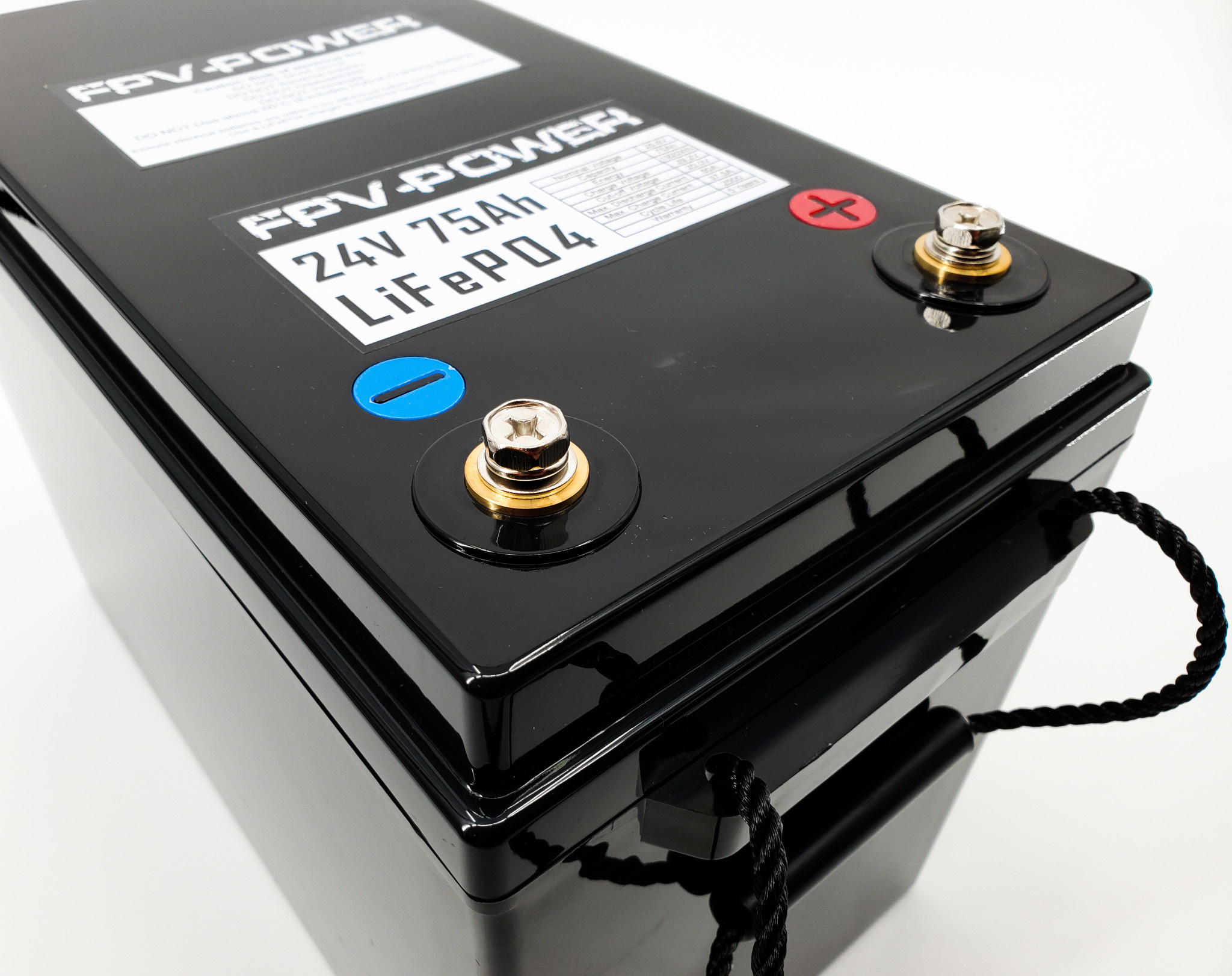

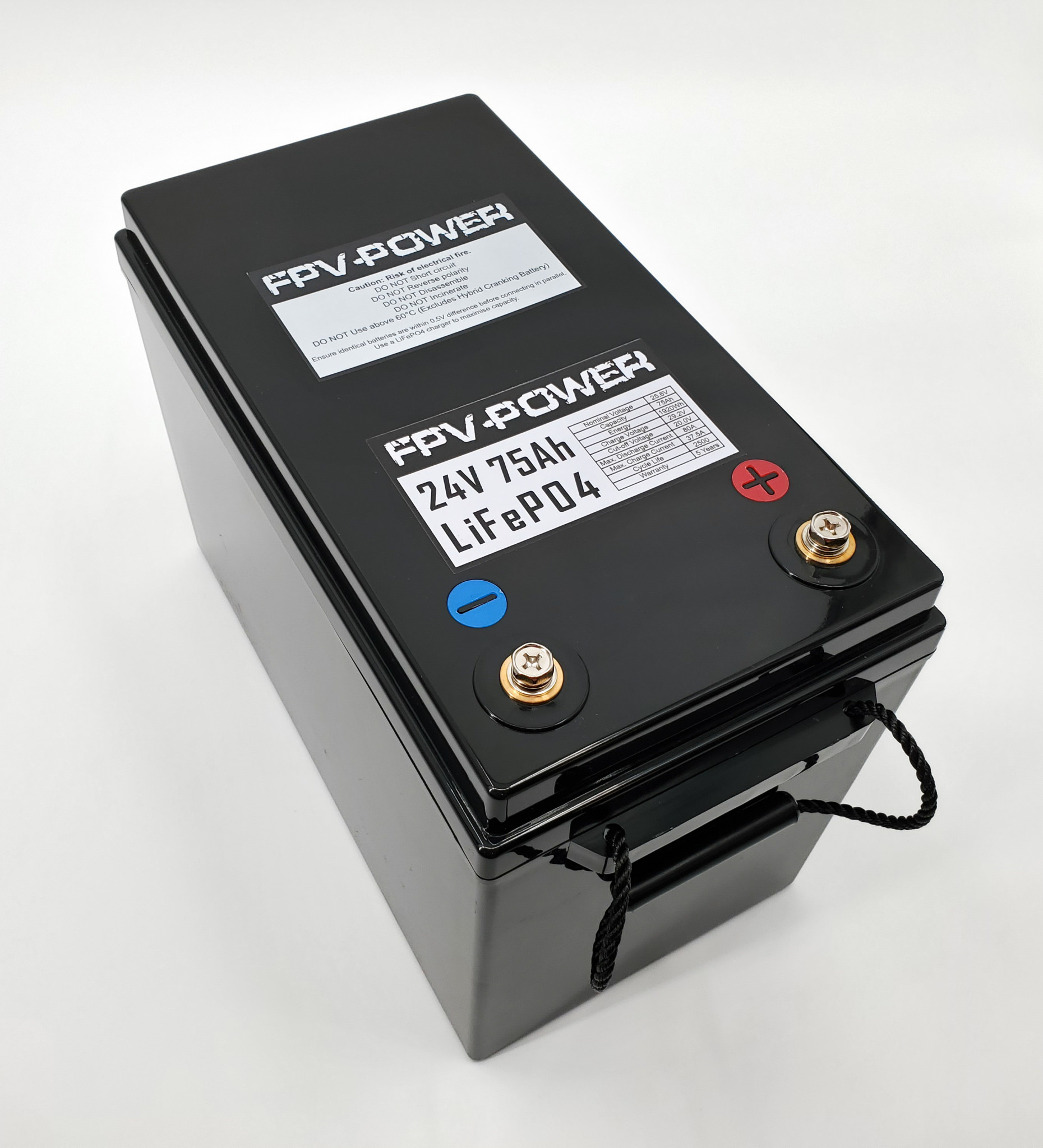

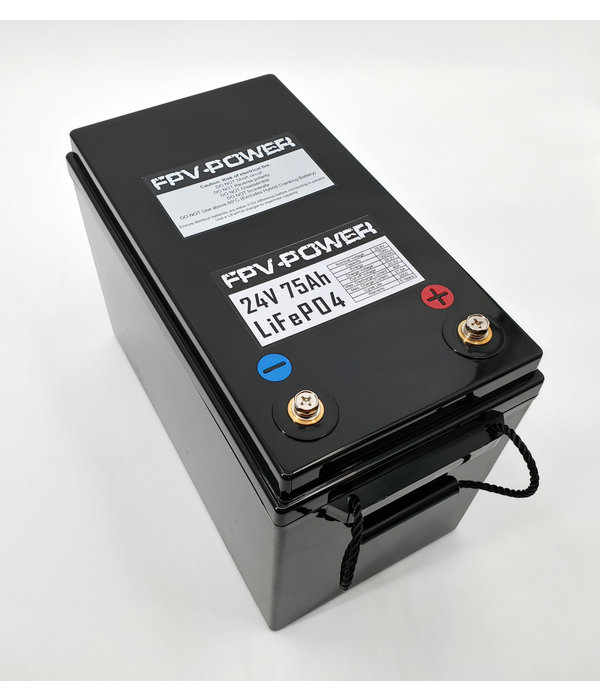

FPV-Power 24V 75Ah LiFePO4 Lithium Battery
$ 1,299.00
$ 999.00
Excl. tax
In-Stock
FPV10798 - 24 Volt - 75ah LifePO4 Lithium Battery
⚠️ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stock number:
FPV_10798
SKU code:
10798
FPV10798 - 24 Volt - 75ah LifePO4 Lithium Battery
FPV-Power LifePO4 batteries are smaller and lighter than other brands. LifePO4 is the longest lasting battery technology providing over 2500 charging cycles. FPV-Power LiFePO4 batteries are backed by a 5 year "no nonsense" warranty *.
FPV-Power lithium batteries have the ability to be drained down close to 0% without damaging cells or affecting overall battery life and longevity. All FPV-Power LifePO4 Batteries are protected by FPV-Power's powerful and efficient Battery Management System.
NO NONSENSE
5 years
Warranty
UPTO
2
times lighter than Lead Acid Batteries
UPTO
2
times more power than lead acid
UPTO
4
times SAMALLER than Lead Acid Batteries
estimated
5-10
years service life
Estimated
2500+
charge cycles
The LiFePO4 Lithium Kayak Battery refines the kayak battery beyond the heavy and cumbersome marine batteries of the past. This lightweight and durable LiFePO4 Lithium Battery not only excels in form but in function as well with multiple output options, superior efficiency, power and amp-hours. The compact design conveniently stows in or on most kayaks.
The FPV-POWER's 24v range of LiFePO4 batteries have been designed specifically with trolling motors in mind and have a BMS rated at 80A continuous which is more than plenty for any 24V motor. Our BMS have also been programmed to handle any high amp spikes which some 24v motors are known to do when first starting up. These batteries can also be used for most other 24v or 48v purposes and can be wired in series or parallel.
Technical Specifications
| Product Description | FPV-POWER 75AH 24 VOLT LIFEPO4 BATTERY |
| SKU | 1010798 |
| Dimension | 10"X7 3/8"X14 1/2" |
| Weight | 34Lbs |
| Nominal Voltage | 25.6 V |
| Capacity | 75 Ah |
| Energy (Watt Hours) | 1920 WH |
| Charge Voltage | 29.2 V |
| Discharge Cut-off Voltage | 20.0 V |
| Max. Discharge Current | 80A |
| Max Charge Current | 37.5A |
| Battery Cycle Life | 2500+ cycles |
| Working Temperature Range | -4F to 140F |
| Warranty | 5 years |
| Connection Method | Parallel or Series |
| Terminals | M10 |
| Case | Tamper Proof Hard Plastic Sealed Case |
| Battery Management System | BUILT-IN SHORT CIRCUIT PROTECTION WITH CHARGING AND DISCHARGING SAFETY CUTOFF. |
| Charging Temp | 32 Degrees to 114 Degrees |
| Charger | Not Included - 12v 10A LiFePO4 Charger Recommended |
Included in the box
- One 24Volt - 75Ah LiFePO4 Battery
Wire Description
- Brown Wire = Positive/+/ Red Wire
- Blue Wire = Negative/-/ Black Wire
Why you should choose Lithium batteries over lead acid
| Compact size, light weight - roughly weighing 1/3rd to 1/10th of a lead acid in the same capacity) | |
| Ability to be drained down to close to 0% without affecting overall battery life and longevity. | |
| Standard lead acids will start to deteriorate when discharged below 50%. This means that a 10Ah Lithium is roughly equivalent to a 20Ah Lead Acid! | |
| Lithium Batteries also don’t create any memory and can be topped up regardless of their current charge level. | |
| Lithium batteries hold their voltage much higher throughout their discharge cycle than lead acids and have a much higher cycle life. |
Reliability
- Very reliable as the technology has been adopted from Drone industry
- Value for money - Lithium batteries have excellent cycles
- Impeccably light weight
- Easy to install
Performance
- Better performance in extreme temperatures.
- Multiple output options, superior efficiency, power and amp hours.
- FPV kayak batteries can be run in parallel to increase your battery capacity.
- Compact design conveniently stows in most kayak hatches.
Safety
- Protection against overcharge, deep discharge, overloading, overheating and short circuit with Battery Management System (BMS).
- Hard Shell Water Resistant Case is great for “on the water” applications and protection.
 |
MORE USABLE POWER FOR EVERY TRIP |
 |
1/2 the Weight of a similar lead acid battery |
 |
FPV-Power LiFePO4 battery 5 year warranty |
 |
BATTERY MANAGEMENT SYSTEM THAT WORKS |
 |
MADE WITH HIGH QUALITY high density LITHIUM CELLS |
 |
Service Life – Up To 10 years |
EXCELLENT BATTERY MANAGEMENT SYSTEM THAT PROTECTS FROM
 |
OVERCHARGE |
|
SHORT CIRCUIT |
|
OVERLOADING |
|
DEEP DISCHARGE |
|
OVERHEATING |
Our battery management system works seamlessly with our high quality high density Li-Ion cells to increase runtime and battery life
