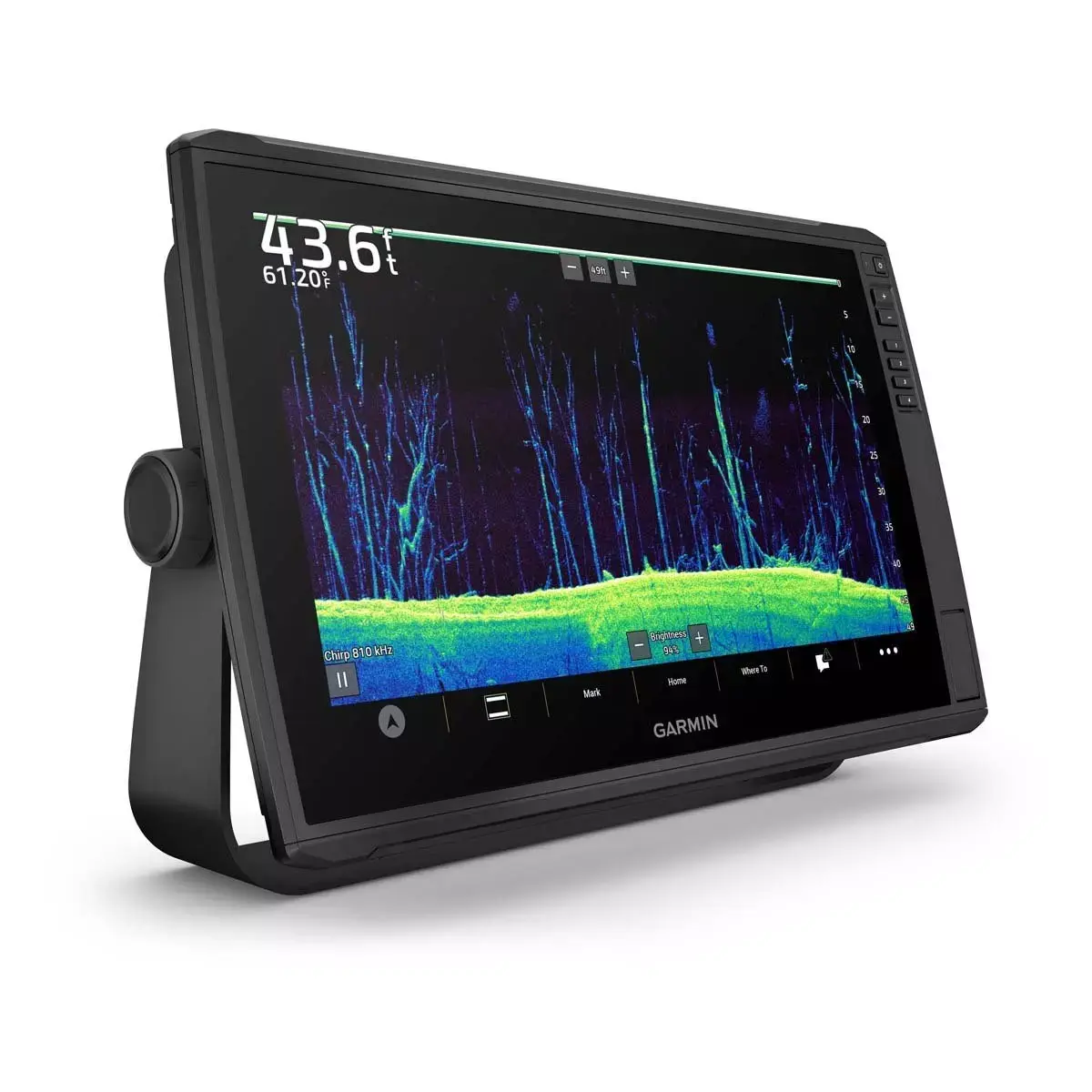

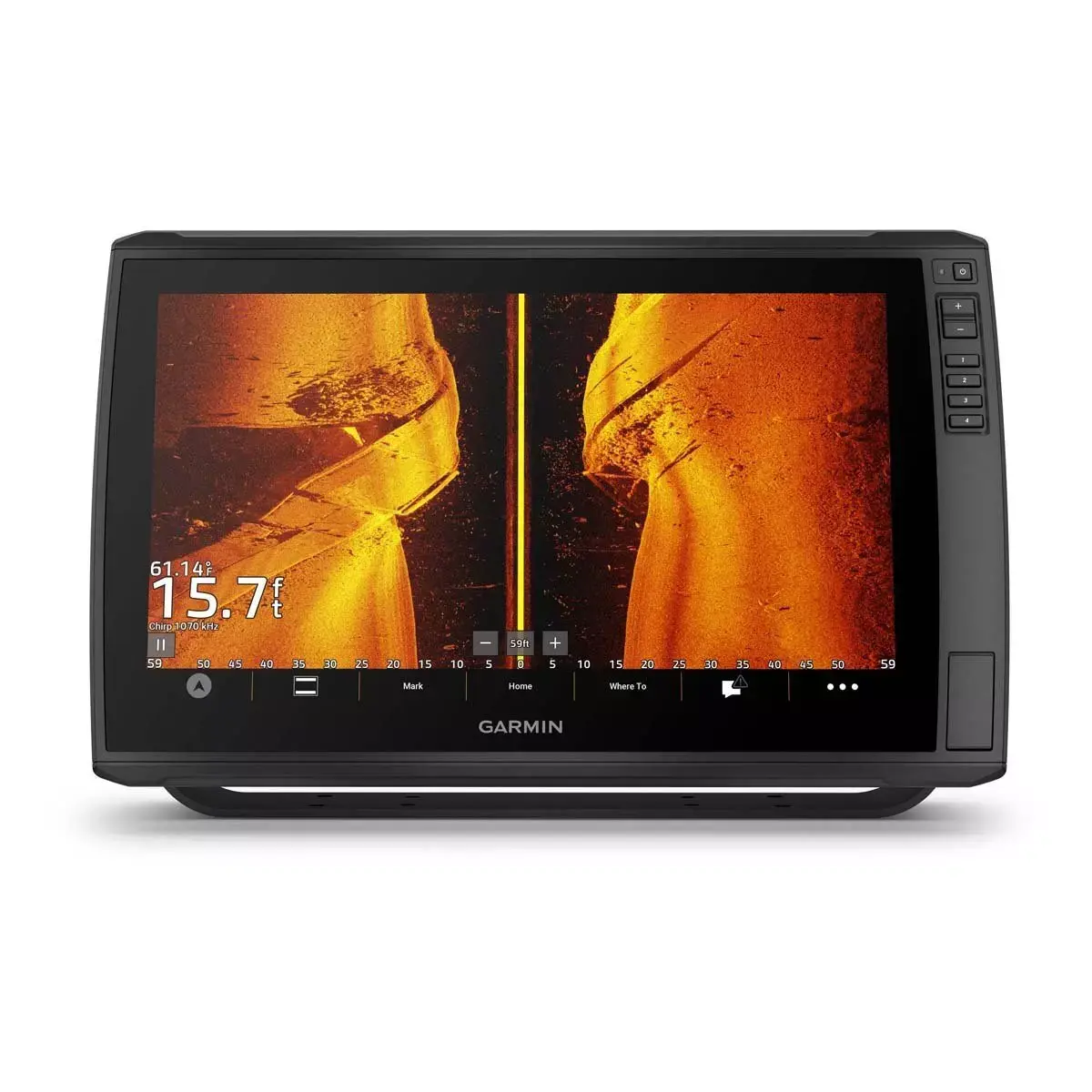

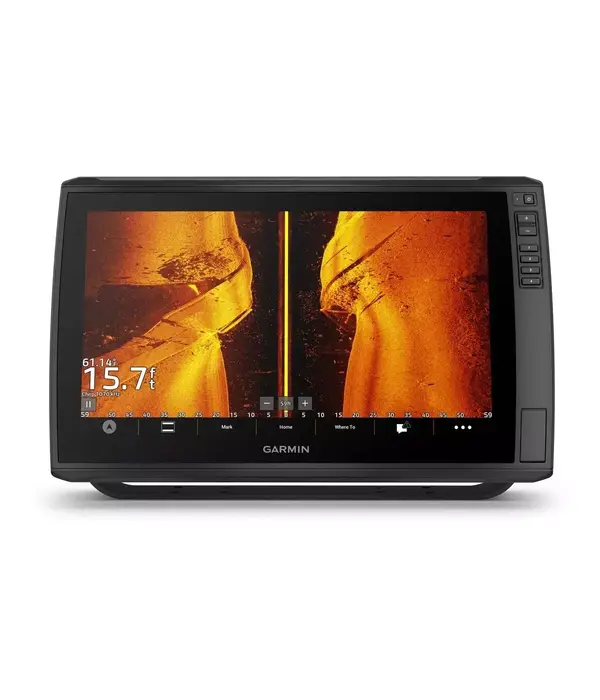

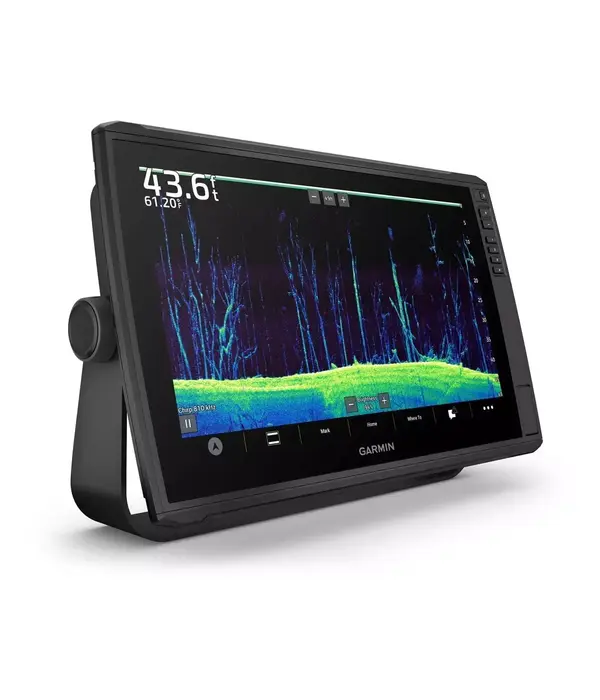

Garmin ECHOMAP Ultra 2 16" Chartplotter 166SV Without Transducer
$ 4,599.99
Excl. tax
Sold Out (Please Contact Us for Availability)
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns.
⚠️ WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stock number:
GAR 010-03386-00
UPC/EAN code:
753759353353
SKU code:
010-03386-00
SEE BIGGER CATCHES ON A BIGGER SCREEN
Designed with the serious angler in mind, this 16-inch chartplotter with a full HD resolution display brings the ultimate in big-picture clarity, brightness and readability to your navigation mapping and sonar returns. Select models come preloaded with Garmin Navionics+™ mapping. Plus, there’s support for the full line of LiveScope™ sonars1 as well as Ultra High-Definition scanning sonars and CHIRP traditional sonar.
16-INCH TOUCHSCREEN WITH KEYED ASSIST
HDMI OUTPUT CONNECTORS FOR SCREEN SHARING
BLUETOOTH® TECHNOLOGY ENABLES VOICE CONTROL FEATURES
SUPPORTS LIVESCOPE SONAR1 AND MORE
WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2
MULTI-BAND GPS FOR SUPERIOR POSITION ACCURACY
General |
|
| Dimension | 16.9" x 10.5" x 3.14" (43.0 x 26.6 x 8.0 cm) |
|---|---|
| Weight |
9.5 lbs (4.31 kg) |
| Water rating |
IPX7 |
| Touchscreen | |
| Display Type | FHD, IPS |
| Display Size | 13.6" x 7.7"; 15.6" diagonal (34.5 x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Mounting Options | Bail or flush |
| Input | Touchscreen with Keyed Assist |
Maps & Memory |
|
| Accepts Data Cards |
2 microSD™ cards |
|---|---|
| Waypoints |
5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors |
|
| GPS | |
|---|---|
| GLONASS | |
| Galileo | |
| BeiDou | |
| Has built-in receiver | |
| Receiver |
10 Hz |
| NMEA 2000 Compatible | |
| NMEA 0183 Compatible | |
| Supports WAAS | |
| Supports multi-band, multi-constellation GPS | |
Built-in Maps |
|
| Built-in Auto Guidance+ | yes (see Additional) |
|---|---|
| Garmin Navionics+ Inland & Coastal | yes (see Additional) |
| Tide tables | yes (see Additional) |
Optional Map Support |
|
| BlueChart g3 | |
|---|---|
| BlueChart g3 Vision | |
| LakeVü g3 | |
| LakeVü g3 Ultra | |
| Garmin Navionics+™ | |
| Garmin Navionics Vision+™ | |
| TOPO 100K | |
| Standard Mapping | |
| Garmin Quickdraw Contours | |
Chartplotter Features |
|
| AIS | |
|---|---|
| DSC | |
| Supports Fusion-Link™ compatible radios | |
| ActiveCaptain® compatible |
yes |
| Supports voice commands | |
| Sailing Features | |
Electrical Features |
|
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 3.9 A |
| Maximum current draw at 12 Vdc | 6.6 A |
| Maximum power usage at 10 Vdc | 48 W |
Sonar Features |
|
| Displays sonar | |
|---|---|
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
| SideVü | Built-in 260/455/800/1000/1200 kHz |
| Panoptix™ sonar | |
| LiveScope | |
Connections |
|
| NMEA 2000® ports | 1 |
|---|---|
| Video output ports |
1 HDMI |
| Garmin Marine Network Ports |
2 (large connector) |
| 12-pin transducer ports | 12-pin scanning sonar |
| Bluetooth® pairing | |
| ANT® (Connectivity) | |
| Garmin Wi-Fi network (local connection) | |
Additional |
|
| Additional |
Garmin Navionics+ (Inland and Coastal): 166sv, 165sv Australia/New Zealand |
|---|---|
